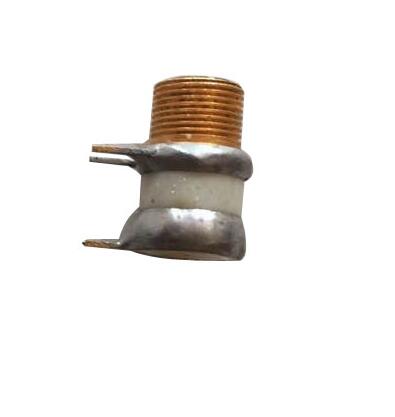

CWSW26T10.2 Air Dielectric Piston Trimmer Capacitor 1.5-10pF 1500VDC

CWSW26T10.2 Air Dielectric Piston Trimmer Capacitor 1.5-10pF 1500VDC

CWSW26T10.2 Air Dielectric Piston Trimmer Capacitor 1.5-10pF 1500VDC

Product Details:

Place of Origin: Jingdezhen China
Brand Name: WPVAC
Model Number: CWSW26T10.2

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Carton within sponge
Delivery Time: 10 days
Supply Ability: 2000pcs per month
Contact Now
Detailed Product Description
Rated Capacitance: 1.5-10pF Peak Voltage: 1500V
Insulation Resistance: 10000MΩ Temperature Range: -65-125℃
Torque: 60gf.cm-360gf.cm Dimension: Φ8*H18

CWSW26T10.2 Air Dielectric Piston Trimmer Capacitor 1.5-10pF 1500VDC





Product Electrical Properties
1 Temperature -55℃~+125℃
2 Turn Torque 60gf.cm~360gf.cm
3 Capacitance Cmax≧10pf Cmin≦1.5pf
4 Loss tangent Value tg§≦10×10-4
5 Insulation resistance ≧10000MΩ
6 Move sub-contact resistance ≦10mΩ
7 Voltage 1500VDC
8
9
10 Life 50 Times
Welding temperature ≦300℃
Welding time ≦3sec

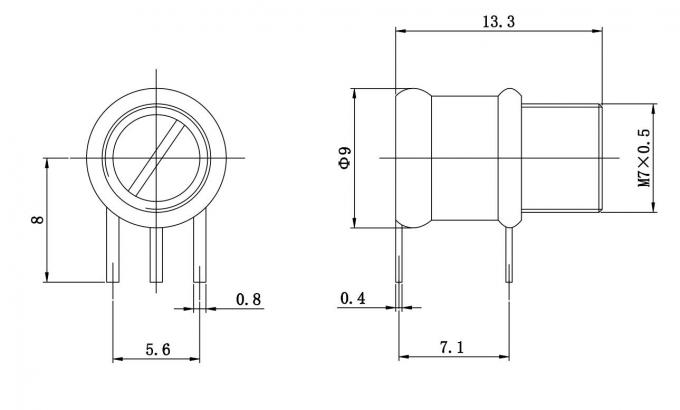

Dimension mm



CWSW26T10.2 Air Dielectric Piston Trimmer Capacitor 1.5-10pF 1500VDC

CWSW26T10.2 Air Dielectric Piston Trimmer Capacitor 1.5-10pF 1500VDC
