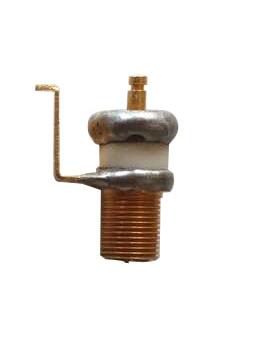

1-10pF Piston Trimmer Capacitor 500VAC , Air Dielectric Trimmer Capacitor

1-10pF Piston Trimmer Capacitor 500VAC , Air Dielectric Trimmer Capacitor

  • 1-10pF Piston Trimmer Capacitor 500VAC , Air Dielectric Trimmer Capacitor
1-10pF Piston Trimmer Capacitor 500VAC , Air Dielectric Trimmer Capacitor
Product Details:
Place of Origin: Jingdezhen China
Brand Name: WPVAC
Model Number: CW10-2a-1/10
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Carton within sponge
Delivery Time: 10 days
Supply Ability: 2000pcs per month
Contact Now
Detailed Product Description
Rated Capacitance: 1-10pF Peak Voltage: 500V
Insulation Resistance: 10000MΩ Temperature Range: -65-125℃
Torque: 60gf.cm-360gf.cm Dimension: Φ8*H18
High Light:

trimmer capacitor variable

,

high voltage trimmer capacitor

CW10-2a-1/10 Trimmer Capacitor 1-10pF 500VAC





Product Electrical Properties
1 Temperature -55℃~+125℃
2 Turn Torque 60gf.cm~360gf.cm
3 Capacitance Cmax≧10pf Cmin≦1pf
4 Loss tangent Value tg§≦10×10-4
5 Insulation resistance ≧10000MΩ
6 Move sub-contact resistance ≦10mΩ
7 Voltage 500VAC
8
9
10 Life 50 Times
Welding temperature ≦300℃
Welding time ≦3sec

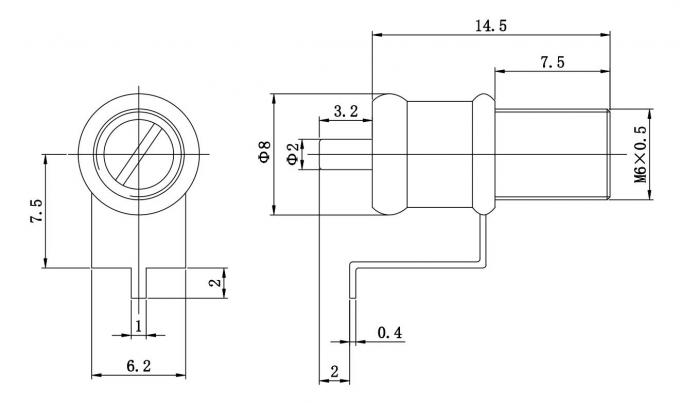

Dimension mm

1-10pF Piston Trimmer Capacitor 500VAC , Air Dielectric Trimmer Capacitor 0

1-10pF Piston Trimmer Capacitor 500VAC , Air Dielectric Trimmer Capacitor 1
