Miniature High Voltage Vacuum Relay For Radar Systems / Pulse Forming Networks

Miniature High Voltage Vacuum Relay For Radar Systems / Pulse Forming Networks

    • Miniature High Voltage Vacuum Relay For Radar Systems / Pulse Forming Networks
    • Miniature High Voltage Vacuum Relay For Radar Systems / Pulse Forming Networks
  • Miniature High Voltage Vacuum Relay For Radar Systems / Pulse Forming Networks

    Product Details:

    Place of Origin: China
    Brand Name: WPVAC
    Model Number: JHC-5

    Payment & Shipping Terms:

    Minimum Order Quantity: 2
    Price: Negotiable
    Packaging Details: sponge in the carton
    Delivery Time: 5-8 work days
    Supply Ability: 200pcs per month
    Contact Now
    Detailed Product Description
    Gas-filled: SF6 GAS Operating Voltage: 3.5KV DC
    Coil Voltage: 12V/24V/26.5V Current: 8A
    Contact Arrangement: SPDT Dimension: Φ18.5*H36
    Mechanical Life: 1 Million Weight: 28

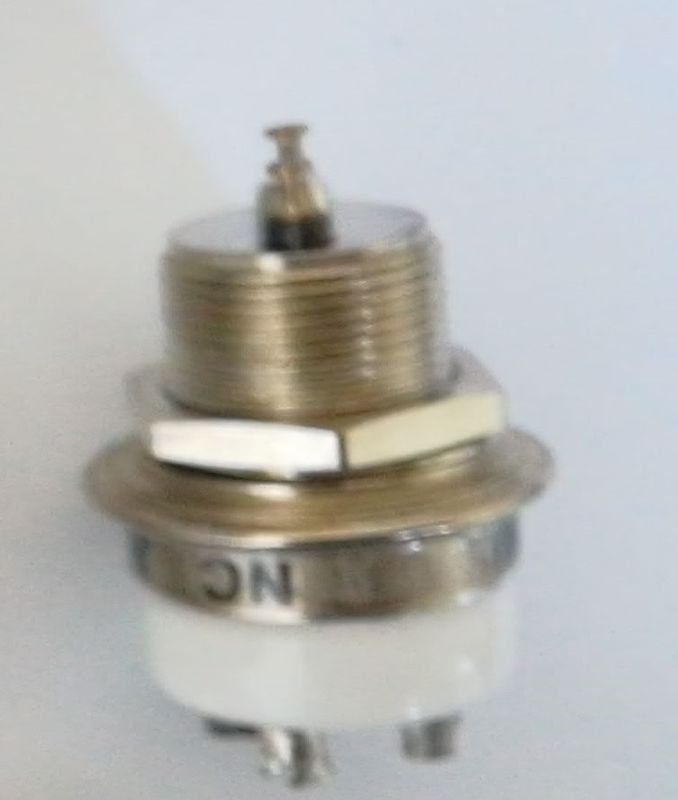

    HV Relay JHC-5 DC3.5KV SF6 Gas filled Relay Coil 12V 24V 26.5V



    Test Voltage 5kV
    Peak Voltage 3.5kV
    Current Carry Amps (RMS) 8amps
    Contact Operate Speed 15MS (Milliseconds)
    Contact Release Speed 19MS (Milliseconds)
    Rated Life Operations 1000,000
    Coil Resistance 335 Ohms
    Coil Voltage 26.5 VDC
    Important Dimensions
    Max Length 36mm
    Max Diameter 18.5mm
    Mounting Flange 16mm
    Weight 28 g
    Mounting With small diameter flange for mounting through hole, an appropriate sized rubber grommet could be utilized.
    Condition New, unused.





    JHC-5 is similar with GH5 of gigavac and KC-5 of Kilovac.
