Vacuum Electron Tube FU3062F Equivalent To 7T62R E3062C For 5KW HF Heating

Vacuum Electron Tube FU3062F Equivalent To 7T62R E3062C For 5KW HF Heating

    • Vacuum Electron Tube FU3062F Equivalent To 7T62R E3062C For 5KW HF Heating
    • Vacuum Electron Tube FU3062F Equivalent To 7T62R E3062C For 5KW HF Heating
    • Vacuum Electron Tube FU3062F Equivalent To 7T62R E3062C For 5KW HF Heating
  • Vacuum Electron Tube FU3062F Equivalent To 7T62R E3062C For 5KW HF Heating

    Product Details:

    Place of Origin: Jingdezhen China
    Brand Name: WPVAC
    Model Number: 7T62R

    Payment & Shipping Terms:

    Minimum Order Quantity: 2
    Price: Negotiable
    Packaging Details: carton within sponge
    Delivery Time: 10days
    Payment Terms: T/T
    Supply Ability: 500 pcs per month
    Contact Now
    Detailed Product Description
    Filament Voltage: 6.3V Filament Current: 32A
    Mounting Position: Vertical,base Up Or Down Cooling: Forced Air
    Dimension: Φ100*H170 Anode Dissipation: 1.5KW
    Net Weight: 1.4kg Frequency: 50MHZ

    Vacuum electron tube FU3062F equivalent to 7T62R E3062C for 5KW HF heating

    Detailed Product Description

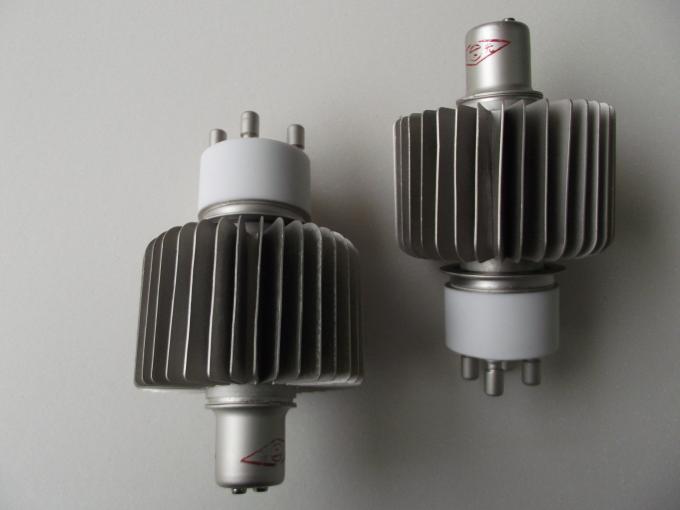

    The FU3062F is a ceramic-metal triode. It has thoriated tungsten cathode and forced air cooling of plate.
    The tube maximum plate dissipation is 1.5kW and maximum frequency operation is 50MHz.
    The tube is designed for oscillator in the industry high frequency heating applications.
    The tube is an equivalent tube for E3062C and 7T62R in applications.

    GENERAL CHARACTERISTICS

    Electrical
    Cathode………………...…...…..Thoriated Tungsten
    Filament Voltage….……...………………...6.3V
    Filament Current………..………...…….30~36A
    Transconductance………………….…….…6.3mA/V
    Amplification Factor……...………...………...…….25
    Interelectrode Capacitances:
    Filament to Grid………………...……….….11pF
    Filament to Plate.………………………….2.2pF
    Grid to Plate….…………………...…….….8.8pF

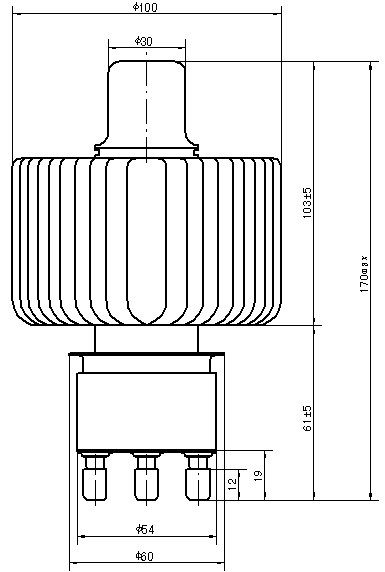

    Mechanical
    Overall Length………………………...………175mm
    Overall Diameter….…………………………φ100mm
    Net Weight…………...…………….…………….1.4kg
    Mounting Position………Vertical, Plate Up or Down


    COOLING
    Cooling………………….……..……………Forced Air
    Air Flow………………………...…....…… ≥4.5m3/min
    Static Pressure Loss……………….........…… ≥98Pa
    Maximum Envelope Temperature…...….…… 250 degrees centigrade


    MAXIMUM RATINGS
    Continuous, Intermittent
    Frequency…………….… 50, 50 MHz
    Filament Startup Current. 49.5, 49.5 A
    Plate Voltage..……….…. 7.5, 7.5 kV
    Plate Current..……..…… 0.75, 1 A
    Grid Current…………..… 200, 300 mA
    Plate Dissipation.………. 1.5, 1.5 kW
    Grid Dissipation...………. 50, 70 W

    TYPICAL OPERATION
    Continuous, Intermittent
    Plate Voltage..……….…. 7, 7 kV
    Plate Current..……..…… 0.7, 0.9 A
    Grid Current…………..… 150, 180 mA
    Grid Resistor…....……. 3000, 3000 ohm
    Output Power……..……. 3.4, 4.5 kW

    Vacuum Electron Tube FU3062F Equivalent To 7T62R E3062C For 5KW HF Heating

    Vacuum Electron Tube FU3062F Equivalent To 7T62R E3062C For 5KW HF Heating

    We have a wide range of equivalents for other part numbers . Please contact us if you can not find here what you need.
