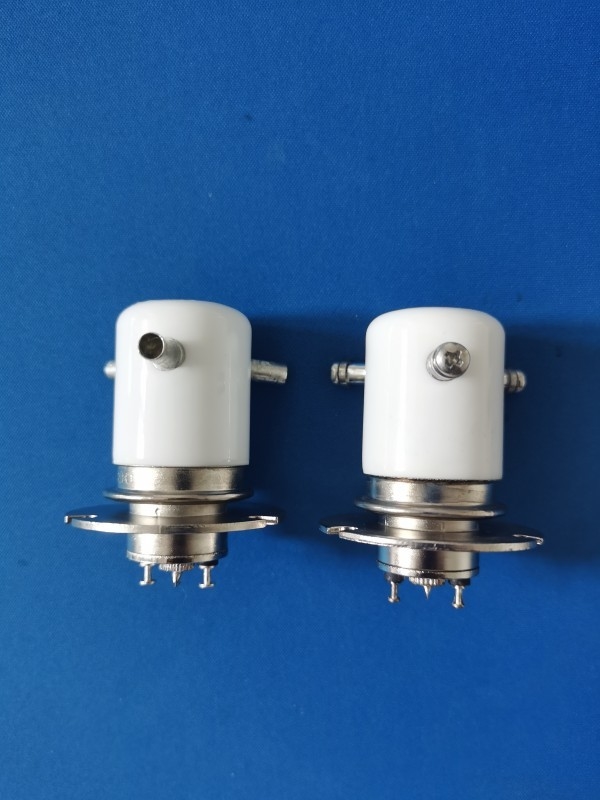

5KV DC 25A High Voltage RF Relay Switch For Antenna Coupler

5KV DC 25A High Voltage RF Relay Switch For Antenna Coupler

  • 5KV DC 25A High Voltage RF Relay Switch For Antenna Coupler
5KV DC 25A High Voltage RF Relay Switch For Antenna Coupler
Product Details:
Place of Origin: Jingdezhen China
Brand Name: WPVAC
Model Number: JPK41C834
Payment & Shipping Terms:
Minimum Order Quantity: 2
Price: Negotiable
Packaging Details: sponge in the carton
Supply Ability: 300pcs per month
Contact Now
Detailed Product Description
Operating Voltage: 5KV DC Current Carry Amps (RMS): 25A
Coil Voltage: 26.5 Contact Arrangement: SPDT
Resistance, Contact Max @ 1A, 28Vdc: 0.05Ω Dimension: Φ13.3*H70
Mechanical Life: 1 Milion Weight: 28
High Light:

5KV RF Relay Switch


Rf Vacuum Relay Switch


5KV High Voltage Vacuum Relay

White Ceramic SPDT 5KV JPK41C834 26.5VDC Carrying 25A High Voltage RF Relay Switch For Antenna Coupler Application


Here are some additional detailed features to consider when selecting a high voltage RF relay switch:


Contact Configuration: High voltage RF relay switches can have different contact configurations, such as single-pole single-throw (SPST), single-pole double-throw (SPDT), or multiple-throw configurations. The contact configuration determines the number of input and output ports and the available switching options. Choose a switch with the appropriate contact configuration to suit your specific application needs.


Contact Material: The material used for the switch contacts is critical for ensuring reliable and low-loss signal transmission. Common contact materials include silver, gold, or other high-conductivity alloys. Consider the contact material and its compatibility with your specific RF signals to minimize signal distortion and ensure long-term reliability.


Coil Voltage and Power Consumption: The coil voltage determines the voltage requirement for actuating the switch mechanism. Ensure that the coil voltage matches the available power supply in your system. Additionally, consider the power consumption of the relay coil, especially in applications where power efficiency is a concern.


Actuation Time: Actuation time refers to the time taken by the relay switch to transition from one state to another (e.g., open to close or close to open). Fast actuation time is crucial in applications requiring rapid switching. Consider the actuation time of the switch to ensure it aligns with the timing requirements of your system.


Mechanical and Electrical Life: The mechanical life and electrical life specifications indicate the expected lifespan of the switch in terms of the number of mechanical or electrical operations it can reliably perform. Choose a switch with a suitable mechanical and electrical life rating based on the anticipated usage and durability requirements of your application.


Environmental Considerations: High voltage RF relay switches may need to operate in various environmental conditions. Consider factors such as operating temperature range, humidity resistance, and shock/vibration resistance. Ensure that the switch is designed to withstand the environmental conditions in which it will be deployed.


Control Interface: Consider the control interface options provided by the switch. Common control interfaces include manual control, TTL control, or digital interfaces like USB, Ethernet, or GPIB. Choose a switch with a control interface that is compatible with your system and offers the desired level of control and automation.


Safety Features: High voltage RF relay switches may incorporate safety features such as arc suppression techniques, overvoltage protection, or thermal protection mechanisms. These features help protect the switch and the connected circuitry from potential damage or hazards. Evaluate the safety features provided by the switch and ensure they align with your application requirements.


Mounting Options: Consider the available mounting options for the switch, such as PCB (Printed Circuit Board) mount, panel mount, or rack mount. Choose a mounting option that suits your installation requirements and provides ease of integration into your system.


Remember to consult the product datasheet, technical specifications, and recommendations from the manufacturer to ensure the switch meets your specific requirements in terms of features, performance, and compatibility with your RF system.


Operating Voltage: 5KV DC Current Carry Amps (RMS): 25A
Coil Voltage: 26.5V Contact Arrangement: SPDT
Resistance, Contact Max @ 1A, 28Vdc: 0.05Ω Dimension: Φ13.3*H70
Mechanical Life: 2Milion Weight: 28
