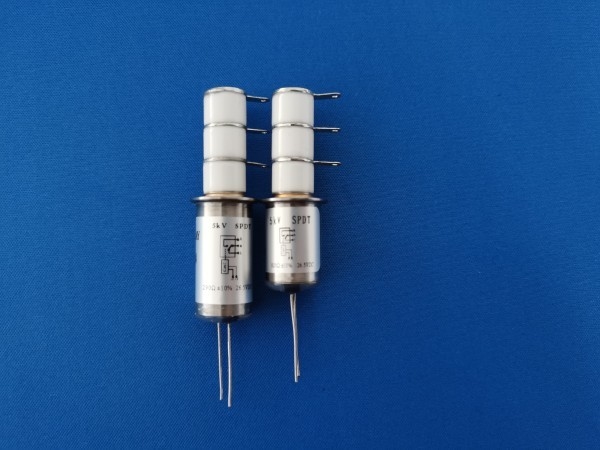

White Ceramic SPDT 5KV JPK41C834 26.5VDC 25A RF Vacuum Relay For Antenna Coupler

White Ceramic SPDT 5KV JPK41C834 26.5VDC Carrying 25A High Voltage RF Relay Switch For Antenna Coupler Application

high voltage RF relay switch is an electronic device specifically designed to control the flow of high voltage signals in RF (Radio Frequency) applications. It is commonly used in various industries, including telecommunications, broadcasting, aerospace, and scientific research.

Here is a description of the key components and operation of a high voltage RF relay switch:

Relay Coils: The relay switch consists of one or more electromagnetic coils that generate a magnetic field when a current passes through them. These coils are responsible for actuating the switch mechanism.

Switch Mechanism: The switch mechanism is typically a set of movable contacts that can be opened or closed by the magnetic field generated by the relay coils. When the coils are energized, the contacts are either pulled together (closed position) or separated (open position).

High Voltage Capability: High voltage RF relay switches are designed to handle high voltage signals, typically ranging from several hundred volts to several kilovolts, depending on the specific application requirements. They are engineered to ensure proper insulation and isolation to prevent arcing and electrical breakdown.

RF Compatibility: These switches are designed to maintain the integrity of RF signals passing through them. They have low insertion loss and are optimized for minimal signal distortion and attenuation, allowing high-frequency RF signals to pass through with minimal degradation.

Shielding and Grounding: High voltage RF relay switches are often housed in shielded enclosures to minimize electromagnetic interference (EMI) and radio frequency interference (RFI). Proper grounding techniques are employed to ensure reliable and stable switch operation and to prevent unwanted signal coupling or noise.

Control Circuitry: The switch is controlled by an external circuit or system that provides the necessary voltage and current to energize the relay coils.

This control circuitry can be as simple as a manual switch or can be integrated into a complex control system utilizing microcontrollers or programmable logic controllers (PLCs).

Applications: High voltage RF relay switches find applications in various RF systems where high power signal routing or switching is required. They are commonly used in RF amplifiers, antenna systems, radar systems, RF filters, and high power RF testing equipment.

Application for Relays:

Vaccum relays are great for high in-rush and stable leakage current applications, and are the perfect solution for low

leakage and high carry current applications.
• ESD Pulse Forming Equipment
• Hi-pot Testing
• Cable Testing
• Motor Winding Testing
• Megohm Testing
• High Power Lasers
• Power Supply Testing
• Mass Spectrometry
• High Voltage Power Supplies
• Transformer Test Equipment
• Ballast Test Equipment

vacuum relays play a vital role when high power and low RF losses are required.
• Vapor Deposition For Semiconductor Wafer Processing
• Radio Antenna Tuning Matching Circuits
• T/R Switches
• Pulse Forming Networks
• Ion Implant
• TWT Power Supplies
• MRI Power Supplies
• Radar Systems
• Security Screening Systems
DC and AC Power Switching Applications
• Intrinsically Safe, Explosion Proof Applications
• Cell Site Power Systems
• Power and Battery Back-Up Systems
• Solar and Other Alternative Power Systems
• Industrial DC Power Switching
• Trucks, Boats, Mining Equipment, Light Rail, Heavy Equipment, Recreation and Emergency Vehicles
Test Equipment & Instrumentation
