products details

Home Products

Vacuum Interrupters for Circuit Breakers

12KV 2500A Ceramic Vacuum Interrupters For Outdoor Circuit Breakers High Stability

Name: 12KV 2500A Ceramic Vacuum Interrupters For Outdoor Circuit Breakers High Stability
Brand: Jingdezhen WPVAC Electric Co.,Ltd
SKU: TD-12/2500-31.5
Price: 64.00 USD
Availability: InStock

Brand Name:	WPVAC
Model Number:	TD-12/2500-31.5
MOQ:	1
Price:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

Jingdezhen China

Rated Working Voltage(KV):

12KV

Rated Working Current(A):

2500A

Rated Interrupting Times At Short Interrupting Current(KA,times:

10/30

Electrical Life(times):

10000

Power Frequency Withstand Voltage(kV):

Ceramic:

99% Al2O3

Dimension:

Φ82*H178

Weight:

2kg

Supply Ability:

1000pcs per month

Highlight:

high voltage vacuum interrupter

circuit breaker vacuum interrupter

Product Description

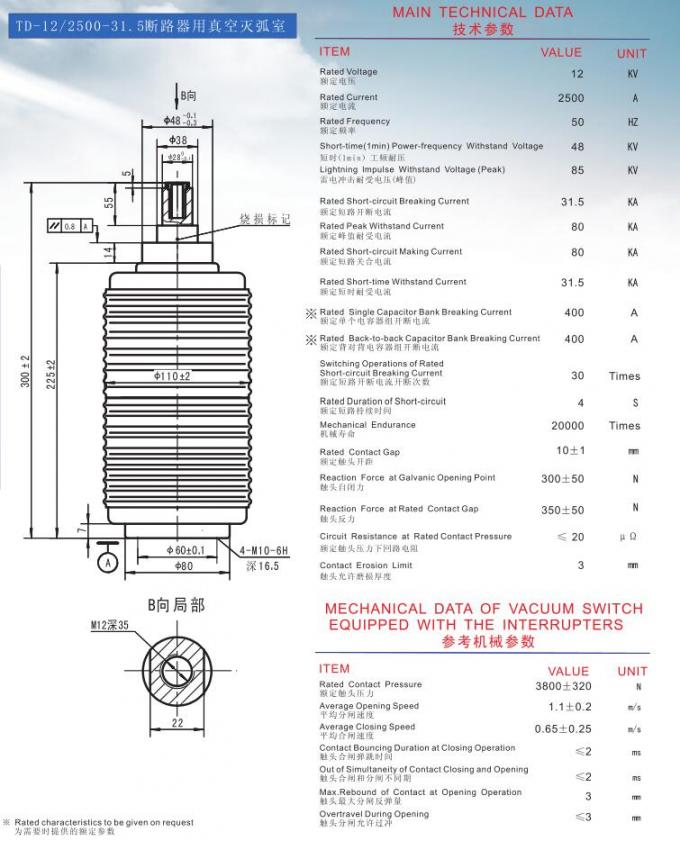

TD-12/2500-31.5 12KV 2500A vacuum interrupters for Circuit Breakers

structure type

The ceramic outer casing vacuum interrupter is mainly composed of a gas-tight insulating shell, a conductive loop, a shielding system, a contact, a bellows and the like.

a vacuum interrupter is a switch which uses electrical contacts in a vacuum. It is the core component of medium-voltage circuit-breakers, generator circuit-breakers & high-voltage circuit-breakers. Separation of the electrical contacts results in a metal vapour arc, which is quickly extinguished. Vacuum interrupters are widely used in utility power transmission systems, power generation unit, and power-distribution systems for railway, arc furnace application & industrial plants.

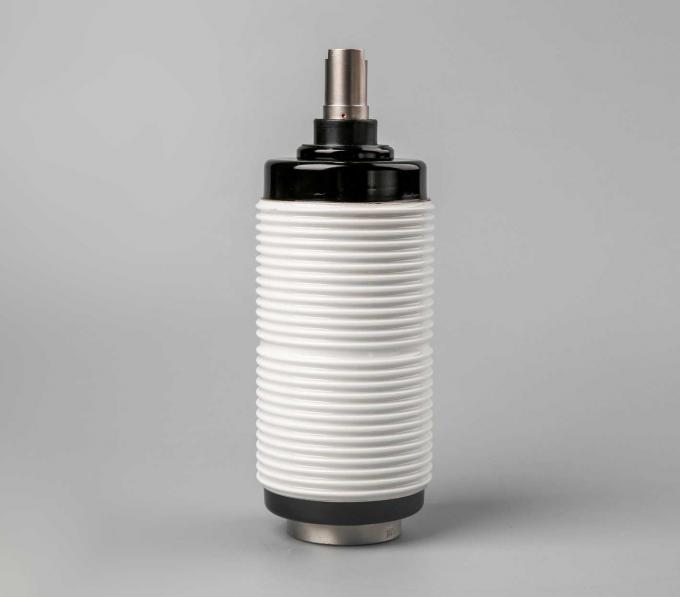

12KV 2500A Ceramic Vacuum Interrupters For Outdoor Circuit Breakers High Stability 0

We have a wide range of equivalents for other part numbers . Please contact us if you can not find here what you need.

The freight of list is just reference, please base on the actual freight when the products are sent to you.

Shipment:

When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 5 days once your payment is completed.

The delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.

Buyers are responsible for all additional customs fees, brokerage fees, duties, and taxes for importation into your country. These additional fees may be collected at time of delivery. We will not refund shipping charges for refused shipments.

The shipping cost does not include any import taxes, and buyers are responsible for customs duties.

We ship by DHL,UPS,FEDEX OR EMS. We will select the fast and reliable way for delivery. Save on shipping and safter on delivery. Items will ship within 5 business days on payment

Received.We are not responsible for wrong or undeliverable address.

Delivery time:

By UPS, DHL, FEDEX: 5-7 Businessdays to most of countries.

Received:

Dear Friend when you receive the items you ordered in 48 hours, pls check it carefully first

If they are damaged or not, if some items broken, pls inform us in time.Pls don’t leave a bad feedback or return the goods to us without contacting us.Don’t worry, we must be responsible for your shopping at our store.

Returns:

After you receive the items you ordered. In 15 days, When you are not satisfied with our products and service. We will refund to you or resend new one to you immediately.

However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.

The buyer will be responsible for the shipping fees to return the items

Warranty & Maintenance:

We offer the 1-month free replacement. Buyers may request for a replacement within 15 days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return.

We provide 12-month free maintenance. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.

Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.

Feedback:

Your satisfaction and positive feedback is very important to us. Please leave positive feedback and 5 stars if you are satisfied with our items and services.

If you have any problems with our items or services, please feel free to contact us first before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer services.

If you don’t see what you wanted: These pages show only a fraction of the stock we have available. We have many thousands of vacuum capacitors, both fixed and variable, as well as vacuum relays. This stock changes daily. If you have requirements for items not listed in these product lines, please email us.and our knowledgeable staff will search our inventory. (Don’t forget to give us your email address and contact information!)
