500pf 30KV Fixed Vacuum Capacitor High Voltage CKT500/30/170 For Broadcasting

Name: 500pf 30KV Fixed Vacuum Capacitor High Voltage CKT500/30/170 For Broadcasting
Brand: Jingdezhen WPVAC Electric Co.,Ltd
SKU: CKT500/30/170
Price: 64.00 USD
Availability: InStock

Brand Name:	WPVAC
Model Number:	CKT500/30/170
MOQ:	1
Price:	Negotiable
Delivery Time:	in 3 days after payment

Detail Information

Product Description

Detail Information

Place of Origin:

Jingdezhen China

Certification:

ISO

Capacity:

1000pf

High Voltage:

30KV

Current:

350A

Dimensions:

Φ153*H160

Weight:

5kg

Material:

Ceramic

Packaging Details:

Carton within sponge

Highlight:

ceramic vacuum capacitor

high voltage vacuum capacitor

Product Description

New fixed Vacuum Capacitor type CKT500/30/170 500pf 30KV

CKT500/30/170

500pF, 30KV, 170A vacuum capacitor

Self-healing ability for overvoltage. Vacuum capacitors can withstand transient overvoltages, and for other capacitors, permanent damage will result.

Save space. The vacuum capacitor occupies the smallest space for a given capacitance and rated voltage.

Widely used in induction heating, HF heating, medium heating,communication transmitters and broadcasting, single-polysilicon solar furnace etc.

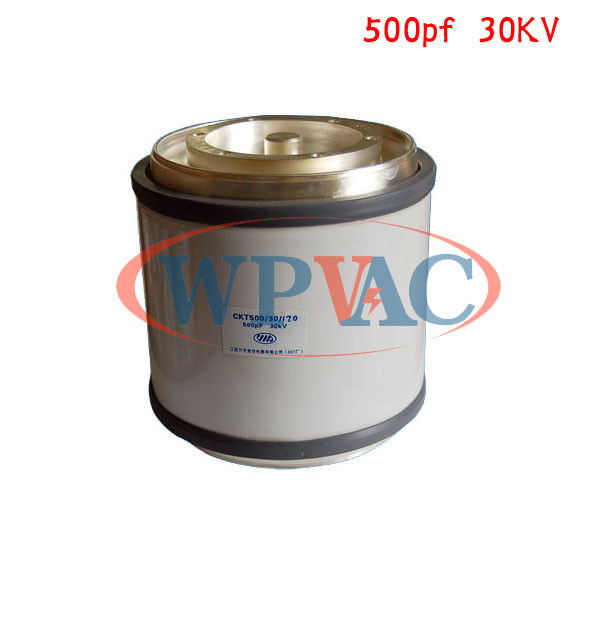

500pf 30KV Fixed Vacuum Capacitor High Voltage CKT500/30/170 For Broadcasting 0

The capacitors could
entirely replace equivalent model of COMET and Jennings.

We have a wide range of equivalents for Jennings part numbers and Comet part numbers. Please contact us if you can not find here what you need.

Code: CKT25/25/87 "C" - Capacitor, "K" - Vacuum, "T" - Ceramic, "25"- Capacitance, "25" - peak HF working voltage, "87" - Max RF current

CKTB750/10/100 "B" - Variable, others same as above

CKTBS1300/35/750 "S" - Water cooling; others same as above

My company often sells the alternate types of the vacuum capacitors as follows: Type Variable vacuum capacitors:CVFP-1000-30S,CVDP-2300-15S,UCSX-1000-15S,CVCD-1000-5S,CVCD-1500-5S,CVFP-750-40S,CVFP-2000-35S,CVHP-1000-40S,CVHP-650-55S,CVDD-400-7.5S,CVEP-2000-15S,CVFP-1500-40D2975,CSVF-500-0015,CV3C-75EB/45,CV2C-50E/35,CV03C-1000G CVEP-1000-15S CVDP-2300-15S CVBA-500BC/5BEA-L CVFP-1500-40D2975 CVEP-2000-15S CV2C-250E CV1C-300-GKN PIHN CWV1-1600-0060 CWV4-650-0055 CWV2-1600-0040 CWV5-1300-0150 CV3W-650FB/50 CV3W-1300FB/50 CV3W-1000JB/50 CWV5-1000-0050 CV2W-1200E CV5A-250ES CV2A-250ES CVHC-1600-40S.etc.

Type fixed vacuum capacitors: CKT-6-0035 CKT-12-0035 CKT-25-0035 CKT-50-0035 CKT-75-0035 CKT-100-0035 CKT-150-0030 CKT-200-0030 CKT-250-0030 CKY-1-30S CKY-2-30S CKY-3-30S CKY-5-30S CKT1-25-0033 CKT1-50-0033 CKT1-75-0033 CKT1-100-0033 CFHP-450-45S CFHM-2000-0040 JCS-250-15S CFED-1000-20S CFHP-1000-50S CFDP-2000-15S CKT-18-0035 MC1C 100E CKT-120-0030 MC1C 200E/15 CF1C-1000H CGF1-260-0050 CFHD-18-50S CF2C-2000F/50.etc.

We can custom manufacture vacuum capacitors to customer’s specifications in as little as 8 weeks.

Our products are used worldwide in applications such as:

Plasma deposition and etching equipment for the semiconductor industry, flat panel display (LCD) and data storage (HDD, DVD) manufacturing.

Plasma fusion

High frequency generators for drying/sealing etc.

Antenna tuning units or couplers

AM and Shortwave Broadcast Transmitters

Medical MRI

Solar panels

Flat panel manufacturing

Other products we manufacture:

Vacuum tubes

Vacuum interrupters

Vacuum relays
