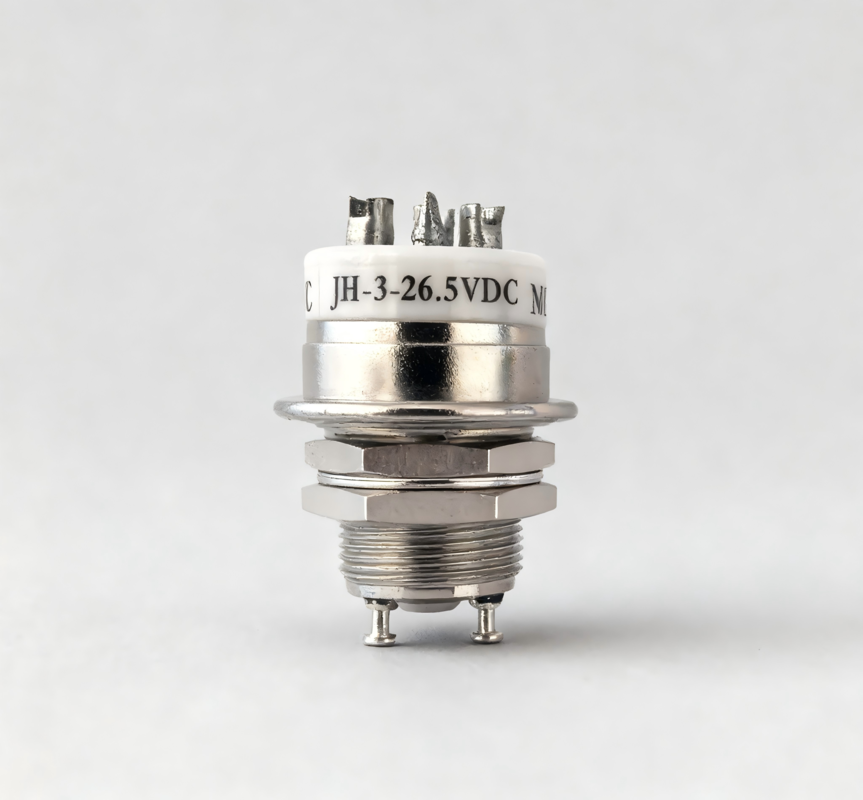

JH-3 DC5KV 18A Current Small Volume Ceramic Vacuum Relay for RF Applications

Vacuum relays play a vital role when high power and low RF losses are required.

• Vapor Deposition For Semiconductor Wafer Processing
• Radio Antenna Tuning Matching Circuits
• T/R Switches
• Pulse Forming Networks
• Ion Implant
• TWT Power Supplies
• MRI Power Supplies
• Radar Systems
• Security Screening Systems
• DC and AC Power Switching Applications
• Intrinsically Safe, Explosion Proof Applications
• Cell Site Power Systems
• Power and Battery Back-Up Systems
• Solar and Other Alternative Power Systems
• Industrial DC Power Switching
• Trucks, Boats, Mining Equipment, Light Rail, Heavy Equipment, Recreation and Emergency Vehicles

Vacuum relays are great for high in-rush and stable leakage current applications, and are the perfect solution for low leakage and high carry current applications.

• ESD Pulse Forming Equipment
• Hi-pot Testing
• Cable Testing
• Motor Winding Testing
• Megohm Testing
• High Power Lasers
• Power Supply Testing
• Mass Spectrometry
• High Voltage Power Supplies
• Transformer Test Equipment
• Ballast Test Equipment

Ceramic vacuum relays mainly have two fixing methods, one is flange mounting and the other is thread mounting. Be careful not to subject the sealing and connecting parts of the ceramic vacuum relay to lateral or torsional forces during installation.
