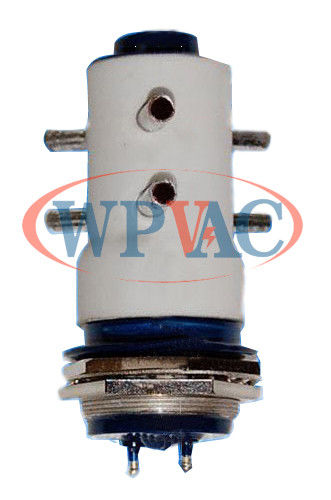

DC12KV 50A Vacuum DPDT Relay Switch For Test Equipment & Instrumentation

    • DC12KV 50A Vacuum DPDT Relay Switch For Test Equipment & Instrumentation
    • DC12KV 50A Vacuum DPDT Relay Switch For Test Equipment & Instrumentation
  • DC12KV 50A Vacuum DPDT Relay Switch For Test Equipment & Instrumentation

    Product Details:

    Place of Origin: China
    Brand Name: WPVAC
    Model Number: JPK-13

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: sponge in the carton
    Delivery Time: 5-8 work days
    Supply Ability: 500pcs per month
    Contact Now
    Detailed Product Description
    Operating Voltage: 12KV DC Coil Voltage: 26.5V
    Current Carry Amps (RMS): 50A Contact Arrangement: DPDT
    Resistance, Contact Max @ 1A, 28Vdc: 0.012Ω Dimension: Φ26*H89
    Mechanical Life: 1milion Weight: 380

    DPDT Vacuum DPDT Relay Switch DC12KV 50A For Test Equipment & Instrumentation



    Test Voltage 15kV
    Peak Voltage 12kV
    Current Carry Amps (RMS) 50amps
    Contact Operate Speed 20MS (Milliseconds)
    Contact Release Speed 8MS (Milliseconds)
    Rated Life Operations 1000,000
    Coil Resistance 285Ohms
    Coil Voltage 26.5VDC
    Important Dimensions
    Max Length 89mm
    Max Diameter 26mm
    Mounting Flange 36mm
    Weight 380 g
    Mounting With small diameter flange for mounting through hole, an appropriate sized rubber grommet could be utilized.
    Condition New, unused.

    DC12KV 50A Vacuum DPDT Relay Switch For Test Equipment & Instrumentation



    DC12KV 50A Vacuum DPDT Relay Switch For Test Equipment & Instrumentation





    JPK-13 is a small volume, and good for needing the signal feeback applications .



    Application

    1. RF Applications: High voltage vacuum relays play a vital role in applications that require high energy and low RF losses. Including vapor deposition during semiconductor wafer processing, radio antenna adjustment matching loop, T/R (transmit/receive) conversion, pulse forming network, ion input, TWT (traveling tube) power supply, MRI (magnetic resonance imaging) power supply, Radar system, security inspection system, etc.
    2. DC (DC) or AC (AC) power switch applications: including intrinsic safety, explosion-proof applications, battery power systems, power and battery backup systems, solar and other similar power systems, industrial DC power switches,
    3. Test equipment and instruments: ESD (electrostatic discharge) pulse test equipment, Hi-POT (high voltage) test, cable test, motor winding test, insulation test, high energy laser, power test, mass spectrometer, high voltage power supply, transformer test equipment, ballast Test equipment (Ballast Test Equipment).





    Warranty & Maintenance:


    We offer the 1-month free replacement. Buyers may request for a replacement within 15 days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return.
    We provide 12-month free maintenance. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.
    Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.

    Feedback:
    Your satisfaction and positive feedback is very important to us. Please leave positive feedback and 5 stars if you are satisfied with our items and services.
    If you have any problems with our items or services, please feel free to contact us first before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer services.





    Contact Details
    Jingdezhen WPVAC Electric Co.,Ltd

    Contact Person: Yu
